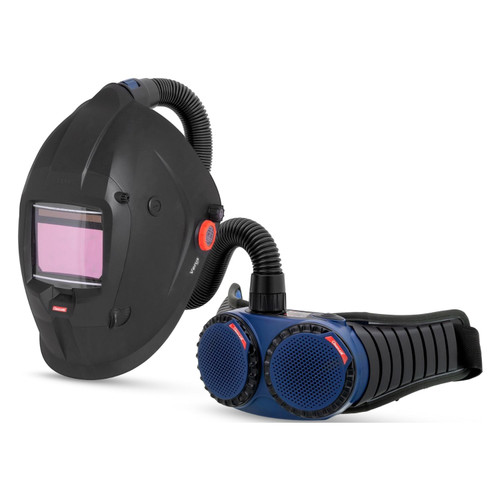

CleanAIR Verus Welding Helmet & Basic PAPR Kit

WELDING HELMET FEATURES

• Superb optics for a better view
• Ten available dark shades for various welding jobs
• The delay function allows the user to set the switching time from dark to light
• A wide range of sensitivity settings allow the welder to adapt the ADF to all welding processes
• Four sensors for stable arc detection
• Smart power control – auto ON, auto OFF (after 30 min if not in use)
• Magnifying lens can be easily attached to the ADF
• Meeting the highest requirements according to EN 379 for eye protection of welders

For more individual comfort you can regulate the airflow in three zones:

Zone 1 – control lever, accessible from outside the helmet, controls the direction of the air coming from the lower part of the airduct.
Zone 2 – control knob, accessible from outside the helmet, controls the air coming from the upper part of the airduct.
Zone 3 – the two sliders on the inside of the the helmet control the intensity of the airflow coming either towards welder’s mouth or from the sides.

HELMET TECHNICAL SPECIFICATIONS

• Weight: 793g
• Material: Polyamide (PA)
• Hose Connection: QuickLOCK™
• Certification: NPF Respiratrory Protection - Powered air purifying respirators - EN 12941, TH3 / NPF 500, and airline sytems (supplied air) - EN 14594 (3B) / NPF 200
• Certification: Eye & Face Protection - Welding helmet - EN 175 B, Welding filter - EN 379 (1/1/1/1)
• ADF Dimensions: 110x90x7mm
• Viewing Area: 98 x 62mm
• Shade Range: Dark state variable 5-8 / 9-14, and light state 3
• Switching Time: 0.00015s (0.15ms) - light to dark, and 0.1-0.9s (adjustable) - dark to light

BASIC PAPR FEATURES

• Lightweight and compact
• Exchangeable Li-Ion battery
• Adjustable airflow in five levels (170 - 240lpm)
• Flow Control system maintains constant airflow regardless of the level of filter clogging or battery charge
• Audio visual alarm
• Indication of filter clogging and battery charge
• Newly designed LED control panel
• Simple one-button operation
• New click-lock system for easy attaching the filter cover

BASIC PAPR APPLICATIONS

• Welding, grinding and surface finishing operations
• Automotive and shipbuilding industry
• Agriculture, food processing industry
• Building and construction, wood working

BASIC PAPR PRODUCT DETAILS

• Product Code: R810000PA
• Weight: 880g (including standard battery)
• Dimensions: 191x173x104mm
• Airflow: 170 and 240lpm
• Alarm: Audio & visual
• Operation / Charging Time: < 10 / < 5 h
• Battery: Li-Ion 7,2 V / 5,2 Ah

BASIC PAPR STANDARDS

• EN 12941 TH3

CERTIFICATION

• Certified to AS/NZS 1716:2012 for Respiratory protective devices
